Deep hole drilling is a critical machining process used when the hole depth far exceeds the diameter. Achieving accuracy, straightness, and surface quality in such conditions is not possible with conventional drilling methods. This is where specialised types of deep hole drilling machines come into play.
From automotive and aerospace to hydraulics and defence, manufacturers rely on different types of deep hole drilling machines to meet demanding tolerance and performance requirements. With advancements in CNC deep hole drilling, these machines now deliver higher precision, automation, and repeatability than ever before.
What Is Deep Hole Drilling and How Does It Work?
Deep hole drilling refers to machining holes with length-to-diameter (L/D) ratios typically greater than 10:1, and often extending to 20:1, 50:1, or even higher. The deep hole drilling machine working principle involves controlled feed rates, specialised tooling, and continuous high-pressure coolant delivery to evacuate chips and stabilise the cutting process.
Unlike standard drilling, deep hole drilling requires precise alignment, vibration control, and consistent lubrication to prevent tool deflection and surface damage.
Why Deep Hole Drilling Requires Specialised Machines
Conventional machining centres struggle with deep holes due to poor chip evacuation, tool wander, and heat build-up. Specialised types of deep hole drilling machines are engineered to overcome these challenges through:
- Dedicated spindle and guide systems
- High-pressure coolant delivery through the tool
- Rigid machine structures
- Controlled feed and rotation synchronisation
These features ensure straightness, surface finish, and dimensional accuracy over long drilling depths.
Types of Deep Hole Drilling Machines Used in Industry
Understanding the types of deep hole drilling machines available is essential for selecting the right solution.

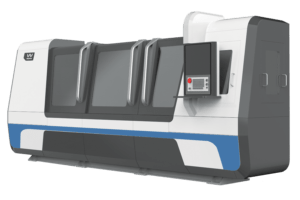

Gun Drilling Machines
Gun drilling machines are the most widely used type, ideal for small to medium diameter holes with high L/D ratios. They use a single-flute tool with internal coolant delivery and are common in deep hole drilling CNC setups for precision parts.
BTA Deep Hole Drilling Machine
A BTA deep hole drilling machine is suited for larger diameters. It uses a dual-tube system where coolant flows around the tool and chips exit through the inner tube. BTA machines are commonly used in heavy engineering, energy, and aerospace components.
Ejector Deep Hole Drilling Systems
Ejector systems rely on a double-tube arrangement and are suitable for medium diameters where internal chip evacuation is required without a fixed guide bush. These systems are often integrated into CNC environments.
Horizontal Deep Hole Drilling Machine
A horizontal deep hole drilling machine is preferred for long, heavy workpieces such as shafts, cylinders, and barrels. The horizontal layout provides better support, alignment, and chip evacuation for extended drilling lengths.
Deep Hole Drilling Lathe
A deep hole drilling lathe combines turning and drilling operations in a single setup. This configuration is commonly used for cylindrical components where concentricity between outer diameters and deep internal bores is critical.
Each of these types of deep hole drilling machines is selected based on hole diameter, depth, material, and production volume.
CNC Integration in Deep Hole Drilling
Modern CNC deep hole drilling has transformed the process from a specialist operation into a highly repeatable production method. CNC integration allows:
- Precise control of feed, speed, and depth
- Synchronisation between tool rotation and workpiece rotation
- Automated tool monitoring and compensation
- Repeatability across batches
With deep hole drilling CNC, manufacturers can achieve tighter tolerances, improved surface finishes, and higher productivity with minimal operator intervention.
Key Deep Hole Drilling Applications Across Industries
Different deep hole drilling applications demand different machine configurations.
- Automotive: Fuel rails, crankshafts, camshafts, transmission shafts
- Aerospace: Landing gear components, actuator housings, structural shafts
- Hydraulics: Cylinder barrels, valve bodies, piston rods
- Defence: Gun barrels, missile components, precision casings
- Energy: Oil and gas drilling components, turbine shafts
Across these sectors, selecting the correct types of deep hole drilling machines ensures process stability and long-term reliability.
Choosing the Right Machine for Your Application
When evaluating types of deep hole drilling machines, manufacturers should consider:
- Hole diameter and depth (L/D ratio)
- Material hardness and machinability
- Required surface finish and straightness
- Production volume and automation level
- Integration with existing CNC systems
For high-volume production, deep hole drilling CNC solutions offer scalability, while R&D and toolroom environments may benefit from flexible configurations.
Role of Deep Hole Drilling Machine Manufacturers
Experienced deep hole drilling machine manufacturers play a crucial role in application success. Beyond supplying equipment, they provide:
- Process engineering support
- Tooling and coolant system integration
- CNC software optimisation
- After-sales service and training
Leading manufacturers design machines that align with specific deep hole drilling applications, ensuring consistent quality and long machine life.
Conclusion
Deep hole drilling is a highly specialised process that demands purpose-built equipment. Understanding the types of deep hole drilling machines helps manufacturers make informed decisions.
With advancements in CNC deep hole drilling, modern machines now deliver exceptional accuracy, automation, and repeatability across industries. By selecting the right machine configuration and working with experienced deep hole drilling machine manufacturers, manufacturers can achieve reliable performance in even the most demanding deep hole drilling applications.
