FLEX FX SERIES – CUSTOMIZED HORIZONTAL MACHINING CENTERS

A PERFECT BLEND OF FLEXIBILITY AND PRODUCTIVITY

WIDMA’s Flex series comes in different configurations to meet the manufacturing needs of ever-changing component designs across industries. These machines are built on the lean concept and are available in the single spindle and twin-spindle configurations.

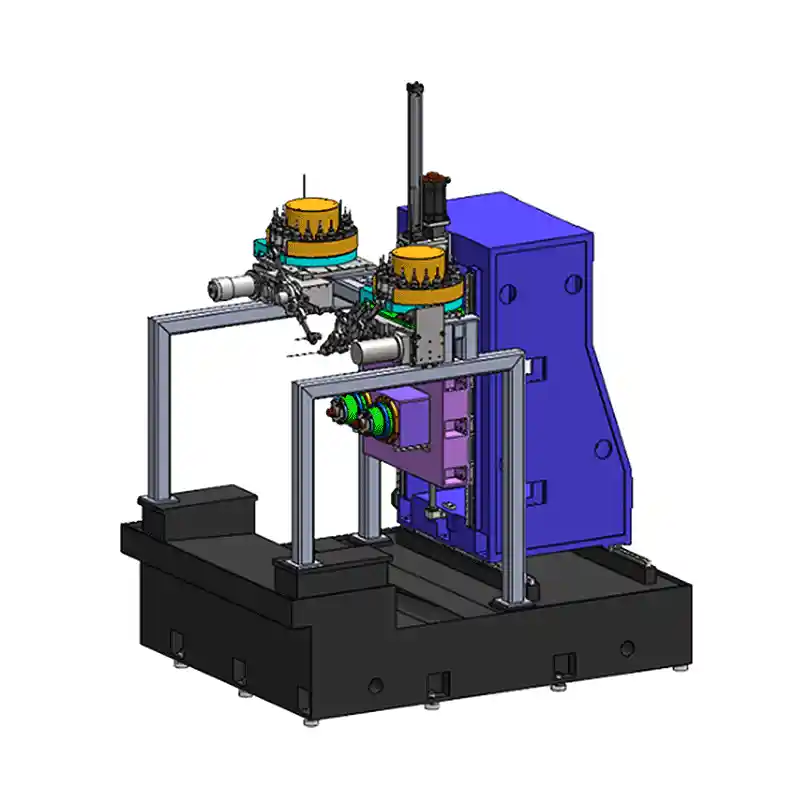

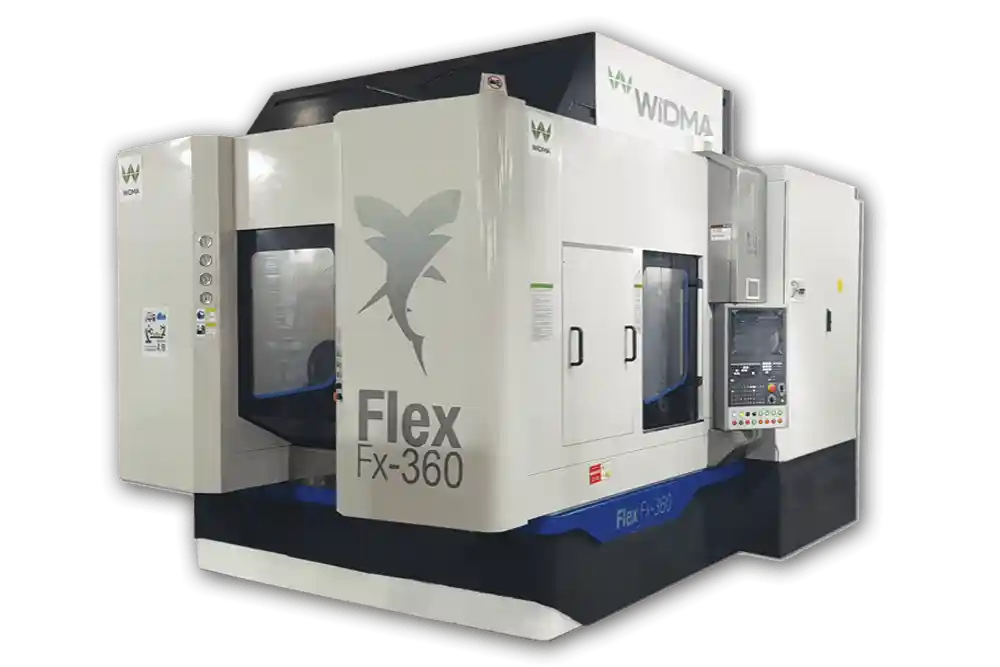

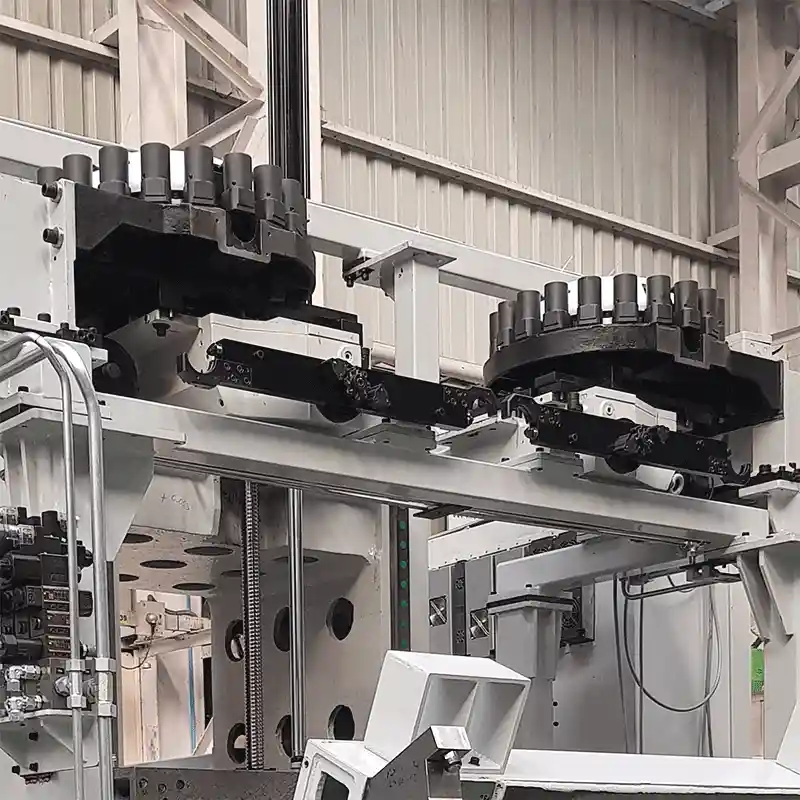

The latest model of ‘Flex Twin Fx 360’ – Twin Spindle Flex machine gives users the reliability and productivity of a Special Purpose Machine (SPM) and flexibility of a General-Purpose Machine (GPM). The twin spindle offers enhanced productivity and machining in a single setup with reduced idle time, thanks to the dedicated automatic tool changer (ATC) for each spindle. The standard features include linear motion guideways for slides, a CNC system with TFT screens, a coolant system with chip conveyor, hydraulic powerpack, full enclosed machine guard, and integral motorized spindle with dual torque characteristics.

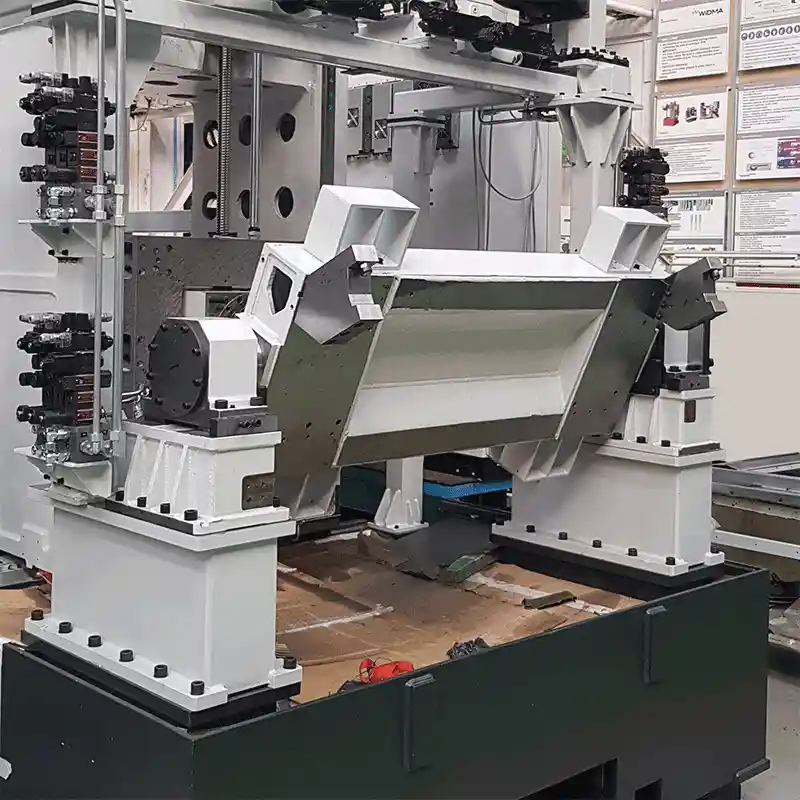

The machine also has fixtures that can be completely customized with options such as rotary pallet changer, A1 and A2 axes for cradle type fixtures, and B-axes/rotary table with tombstone type fixtures. WIDMA offers other optional features such as tool monitoring systems, mist collector systems, auto door with safety curtain, high pressure through tool coolant supply, fourth/fifth axis capability, linear scale, and IoT compatibility.

Technical Specifications

FLEX Fx 360 – TWIN SPINDLE MACHINE
Axes movements
Total no. of axes 5 axes
Linear Axes Stroke (X/Y/Z) mm 360/500/400
Axes Rapid rate (X/Y/Z) m/min 40/40/40
CNC Rotary table (A1/A2) 360 deg x 2 nos
Spindle
Spindle Type Integral motor spindle
Power (Cont./30 mins) kW 15/18.5 (30 mins)
Max. RPM RPM 6000 / 9000
Spindle taper HSK A 63
Auto Tool Magazine (ATC)
No. of tools No. 20 x 2 nos
ATC Type Twin arm type
Max Tool diameter/length (Adj. pocket full) mm 80 / 300
Max. tool weight kg 7
Coolant systems bar Thru’ coolant @15 bar
Machine controls Mitsubishi
Component capacity
Component size (L x B) mm 250 x 250
Pallet
Auto Pallet changer Rotary type / 180 deg swivel
Pallet size (L x B) mm 500 X 800 (fixture plate)
Machine dimensions
W x D x H mm 3100 x 5900 x 4500
